The International 8000 Series End Cap is used on the hinge side of the the exit device.  This cap includes the mounting bracket and the mounting screws.   It is constructed of a die cast metal for years of service.  The piece measures 2-3/8" by 2-1/4" by 1-1/2".  This end cap is used on the International Door Closer models, 8510S, 8610S, 8710S, 8810S, 8620S, 8530S, and 8650S devices, along with the same devices ending in F.

Actuator 4-1/2" diameter, with blue engraved lettering with text.

Rixson 28 Series Bottom Arm Package 282026

This kit included the Arm Plate & Stud, Arm Spindle Screw, Arm & Arm Set Screw, Arm Spindle Collar and Arm Alignment Screw & Washer

Rixson Part # 282026

Rixson 27 Series Bottom Arm Package 252050

This kit included the Arm Cap & Screw, Offset Arm, Arm Shim, Arm Bearing Washer, and Spindle Shouler Collar.

Rixson Part # 252050

LCN Drop Plate for Pull Side Mounting

Use this LCN Drop Plate when mounting the door closer on the Pull or Hinge Side of the Door. Allows to door closer to me mounted on narrow stile doors.

LCN Part #'s
1260-18
1460-18
4040-18
4040XP-18
4010-18

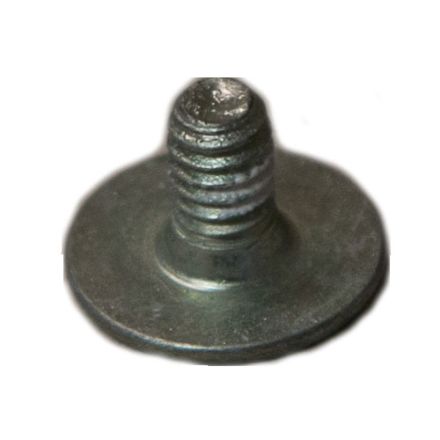

LCN Arm Screw

This screw goes by the number 4040-159, 4110-159, 4020-159, 1260-159, 1260-159, 4040-159 and 4040SE-159.   The screw has a 3/4" diameter head, 1/2" high with a 1/4" diameter shaft with 20 threads per inch (1/4-20 screw).

The LCN 1370 was a door closer made in the late 1990's to 2006 or so. The closer had a special mounting plate that made installation very quick. Many people have this door closer in use and now they are starting to fail. The LCN 1370-18QF Quick Fix Plate converts the mounting holes of the 1370 to a standard template closer, which is 3/4" x 9-1/16". By using this plate you will not have to redrill holes in your door. The plate measures 2 by 10-1/4 inches with tapped holes that measure 3/4 x 9-1/16 inch.

LCN Sentronic Door Closer 4310ME

Standard LCN Sentronic Door Closer 4310ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, Swing-Free arm, track, track roller, and wood and machine screw pack. See 4310ME Series pages 23 & 24 for options. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted with Swing-Free arm engaged. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Swing-Free arm allows door to be moved without door closer resistance. Interfaces with fire alarm systems. LCN Sentronic Door Closer 4310ME part are also available.

Doromatic SC90 Door Closer

3/4" x 6-3/8" Hole Spacing,
Non-handed, Tri Pack Mounting- push-pull or top jamb mount.
Adjustable Closing, Latching and Power valves.
Grade 3 Closer

We ship the SC91 Rw/PA

LCN Drop Plate for Top Jamb Mounting

Use the LCN Top Jamb Mounting Plate for applications where the door closer body is mounted on a narrow overhead jamb.

LCN Part #'s
1260-18TJ
1460-18TJ
4020-18TJ
4040-18TJ

3/4" x 9-1/16" Hole Spacing,
Non-handed, Tri Pack Mounting- push-pull or top jamb mount.

Actuator 4-1/2" diameter, with blue engraved lettering.

LCN Sentronic Door Closer Arm - 4110SE-3077T

LCN part # 4110SE-3077T

This arm will only work on the 4110SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, etc..) and the hand of the door, see diagram.

LCN Drop Plate for Parallel Arm Mounting

The 18PA LCN Drop Plates are designed to lower the mounting holes on doors with glass at the top of the door. If your door has a narrow stile at the top of it surrounded by a metal frame, mount the door closer on this plate.

LCN Part #'s
1260-18PA
1460-18PA
4040-18PA
4040XP-18PA
4110-18PA

Doromatic SC80 Door Closer

3/4" x 12" Hole Spacing,
Non-handed, Tri Pack Mounting- push-pull or top jamb mount.
Adjustable Closing, Latching, Backcheck and Power Adjustments
Grade 1 Closer

We ship the SC81 Rw/PA

Actuator 4-3/4" square, with blue engraved lettering with text.

LCN Sentronic Door Closer Arm - 4010SE-3077T

LCN part # 4010SE-3077T

This arm will only work on the 4010SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door, see diagram. This arm is for a discontinued LCN Door Closer. We can not allow returns, each arm is special ordered.

Doromatic SC70 Door Closer - Same Hole Spacing as the Norton 7500 and Yale 4400
2-3/8" x 6-3/4" hole spacing

ANSI/BHMA A156.4, Grade 1
■ UL Listed
■ ADA compliant
■ 1-1/2” diameter piston
■ Hinge side, top jamb and parallel arm configuration standard with SC71 Rw/PA
■ Adjustable size 1-6
■ Single piece cast aluminum body
■ Staked valves
■ Separate adjustable general speed, latch speed, backcheck and backcheck position
■ Non-handed for left and right swinging doors
■ 10 year warranty

We ship the SC71 Rw/PA

Actuator 4-3/4" square, with blue engraved lettering.

LCN Sentronic Door Closer Arm - 4040SE-3077T

This arm will only work on the 4040SE. If you have another LCN Sentronic Model, we can special order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door.

LCN Part # 4040SE-3077T

Corbin Russwin Door Closer 2800 Regular Arm

Used on almost all of your Corbin Russwin door closers since the 1970's.

Part # 688F95

Actuator 6" diameter, with blue engraved lettering, with text.

Doromatic Door Closer Hold Open Arm Only

Doromatic Door Closer Hold Open Arm. Includes everything is the image. Can be used to convert you regular non hold arm to a Hold Open Door Closer. Arm holds the door open when door is rotated open. The hold open postion is adjustable. This is the hold open arm for the SC61 Hw/PA, SC71 Hw/PA, and the SC81 Hw/PA.

Doromatic Part numbers:
SC60 - SC60-3049/PA , SC70 - SC70-3049/PA , SC80 - SC80-3049/PA

Dor-o-Matic Door Closer Regular Arm Only. This is the standard regular arm for the SC60, SC70, and SC80 Doromatic Door Closers

Doromatic part # SC60 - SC60-3077/PA, SC70 - SC70-3077/PA, SC80 - SC80-3077/PA

Actuator 6" diameter, with blue engraved lettering.

Corbin Russwin Quik-Install Mounting Bracket

This Corbin Russwin Quik-Install Mounting Bracket is used on all of the 100, 110, 120, 2800, 2810, 2820, DC2200, DC2400, DC2600, DC3200 and DC6200 Door Closers.

Bracket size: 1-3/4" (44mm) (vertical) x 6" (152mm) (horizontal)
Hole spacing: 1" (25mm) (vertical) x 4-5/16" (110mm) (horizontal)

Corbin Russwin Part # 188F03

Corbin Russwn PA Bracket

Corbin Russwin part # 188F41-8

The LCN Fusible Link melts at 165 degrees to release the hold open mechanism.   Link measures 1-3/8 long by a 1/2" wide, the center to center distance on the holes is 15/16".

LCN Part Numbers:
4010-28
4110-30
4020-31
